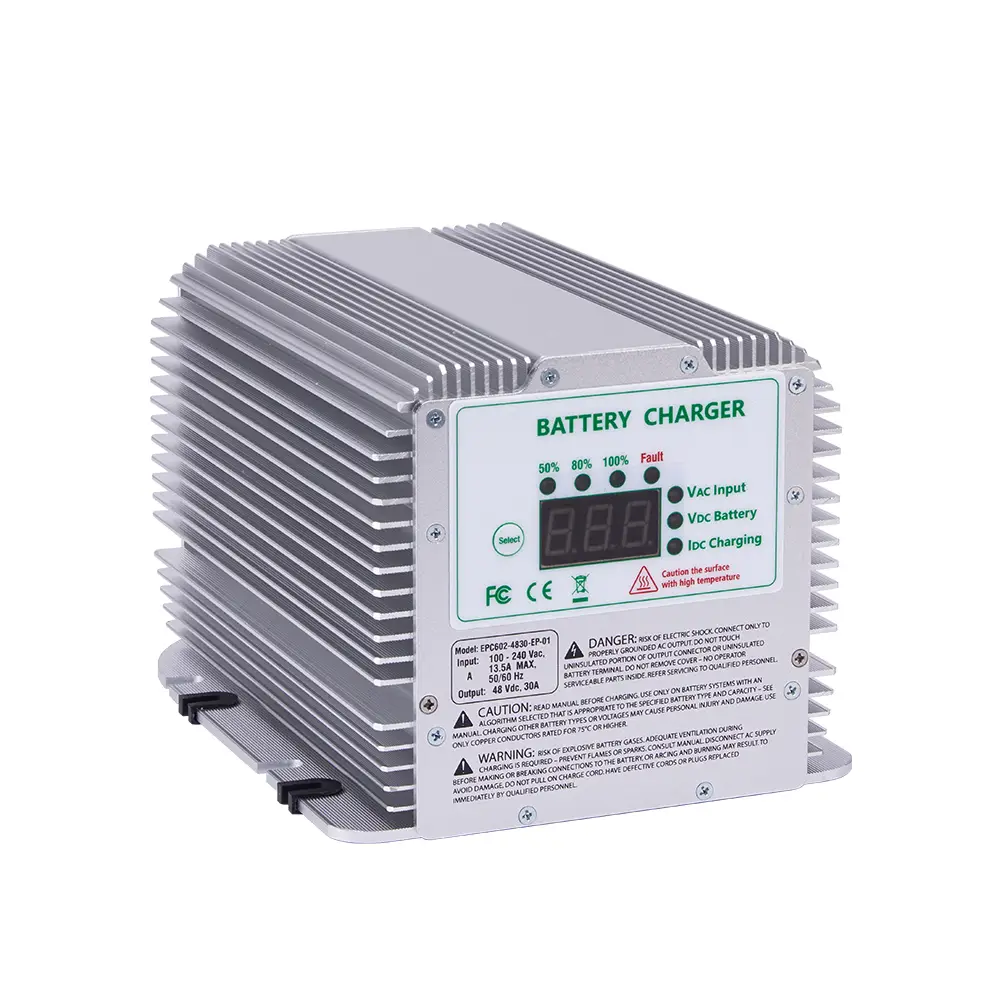

48V 30A Boom Lift Battery Charger
The EPC4830 charger is a high-reliability, highly cost-effective charger designed to be compatible with lead-acid (FLOOD, AGM, gel) pure lead batteries and lithium batteries. It can be installed in both onboard and off-board fixed configurations and comes standard with a CAN bus. The charger supports customizable charging profiles based on customer requirements and features built-in high and low voltage protection, supporting voltages up to 420V. This product is widely used in aerial work platforms, golf carts, sightseeing vehicles, cleaning equipment, and other similar applications.
| DC Output | |
| Maximum DC Output Voltage | 68VDC |
| Maximum DC Output Current | 30A |
| Maximum Output Power | 1500W |
| Minimum Starting Voltage | 6VDC |
| Maximum Locking Current | 15A |
| Applicable Battery Type | Lead acid (flood, AGM, GEL), Lithium-ion |
| Reverse Polarity Protection | YES |
| Short Circuit Protection | YES |
| CAN Communication | YES |
| AC Input | |
| AC Input Voltage Range | 85V ~ 265V |
| Nominal AC Input Voltage | 100 ~ 240VAC |
| Nominal AC Input Frequency | 50 / 60Hz |
| Maximum AC Input Current | 13.5A |
| Power Factor | > 0.98 under heavy load |
| Regulatory | |
| Efficiency | MAX 94% |
| Safety | CE, CB, ETL |
| Mechanical | |
| Dimensions | 226 x 180 x 146 mm |
| Weight | 5.2 KG |
| AC Input Connector | IEC320-C14 |
| DC Output Connector | M8 red and black wire with ears |
| Cooling | Natural heat dissipation |
| External Indicator Cable | Three green one red, bi-colour light |
| Environmental | |
| Enclosure | IP66 |
| Operating Temperature | -30°C ~ +65°C (power reduced if internal temperature too high) |
| Storage Temperature | -40°C ~ +70°C |
