HQ 60W

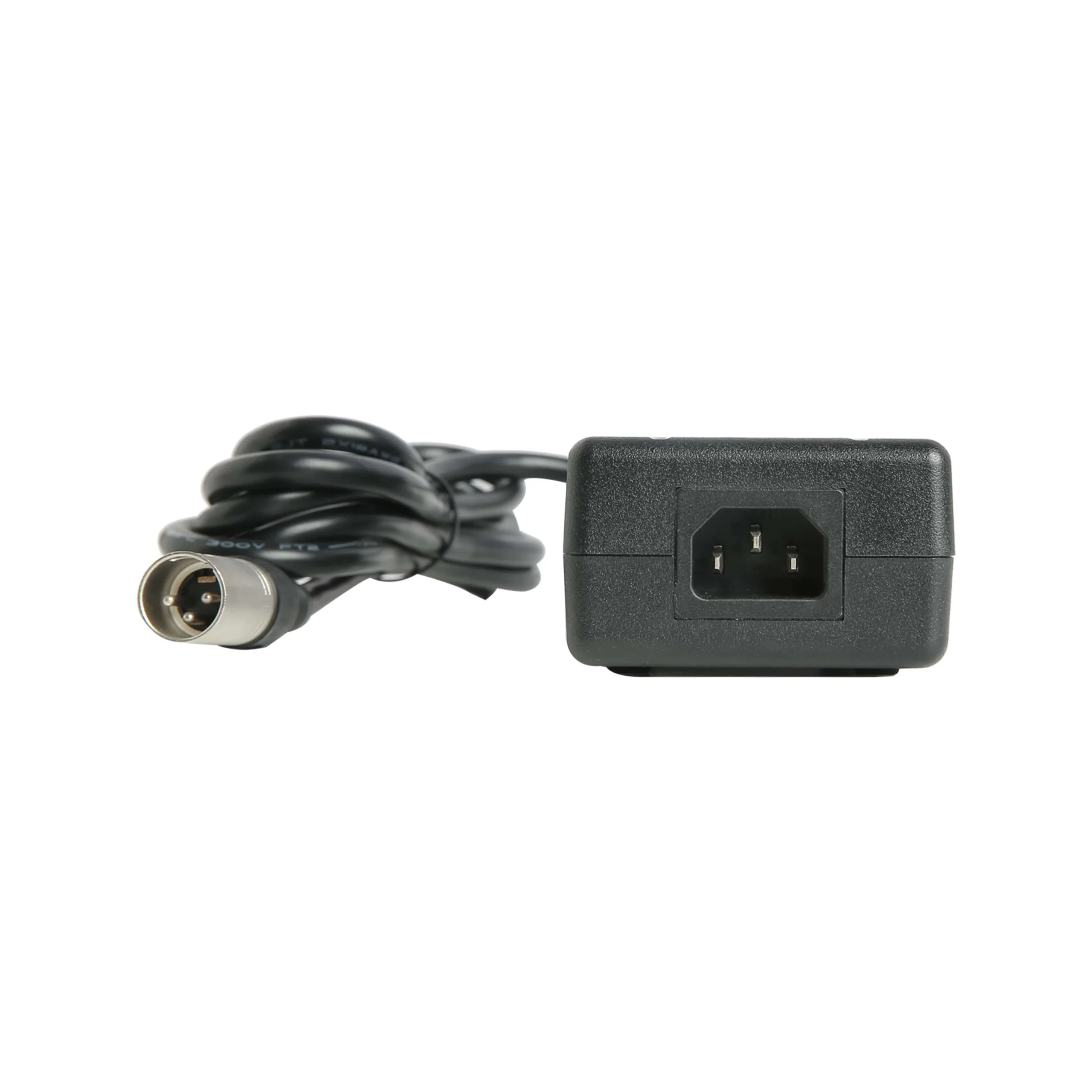

HQ 60W is a sealed, dustproof chargers which are widely used in wheelchair & mobility.
Highlighted Features:
- IP54 Water & Dust Proof
- Support customization onboard mount
- Medical Approval
- High efficiency and low temperature

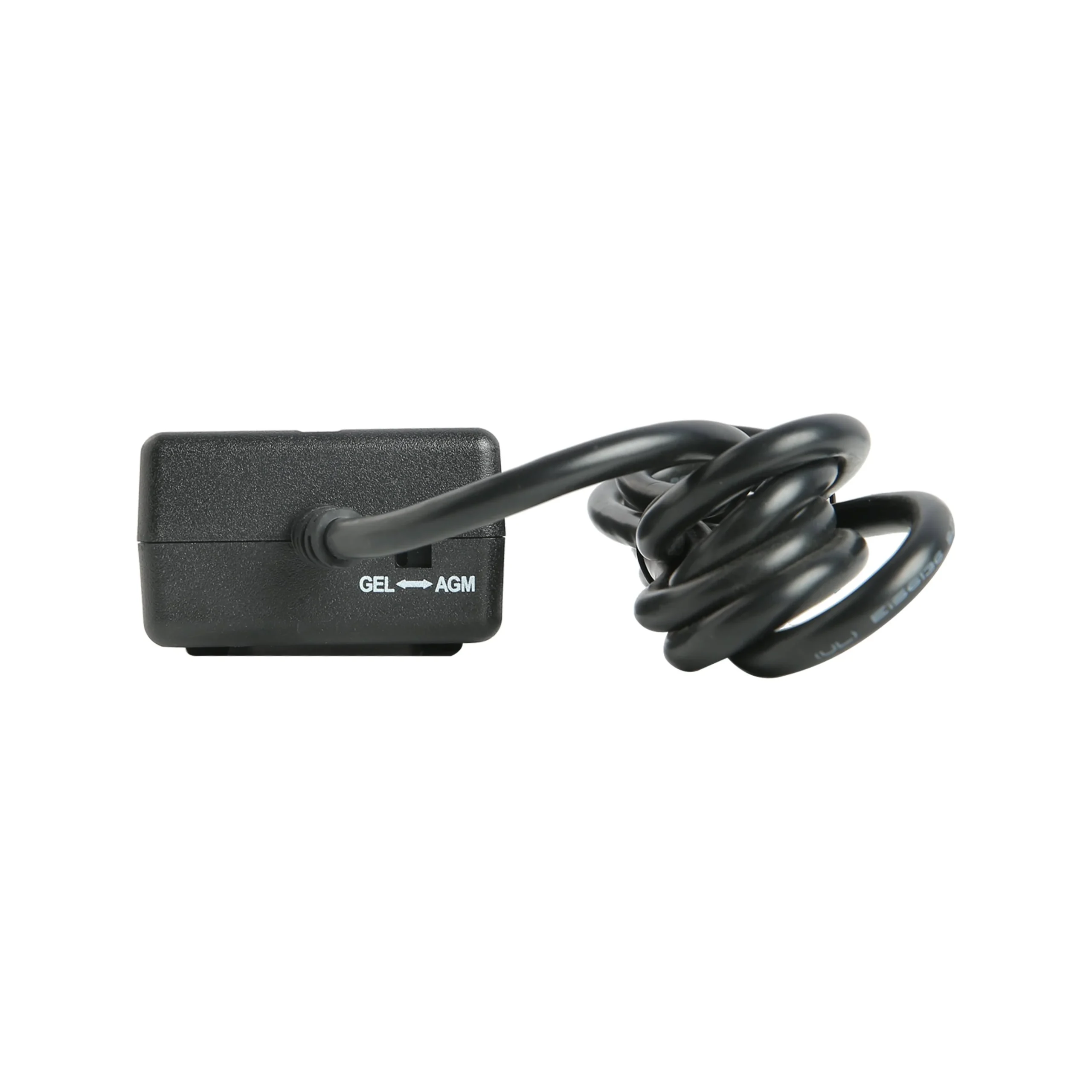

- User selectable dip-switch for charging two battery type
- Key components with global leading brand
Dimensions & Parameters
| Output Voltage (support customized algorithm) | |||
| Fast Charge (AGM) | DC 29.6V (+/- 0.2V) | Fast Charge (GEL) | DC 28.6V (+/- 0.2V) |
| Float Charge (AGM) | DC 27.4V (+/- 0.2V) | Float Charge (GEL) | DC 26.6V (+/- 0.2V) |
| Charging Current | |||
| Fast Charge | DC 2A +/- 5% | Float Charge | < DC 500 mA |
| Input Voltage | 100 - 240 Vac +/-10% | Input Frequency | 50 - 60 Hz |
| Over Voltage Protection | DC 31V Max. | Over Current Protection | DC 2.5A Max. |
| Leakage Current | 0.75mA Max. | Input Power | 75W |
| Input Standby Power | <1W | Efficiency | > 85% @ Full Load |
| Battery Charging Capacity | 7 - 22 Amp Hours | Output Cord | 2m long, SJT type with XLR 3-pin Male Connector |
| Dielectric Withstand Voltage | AC 3.0KV for 1 min. @ 10mA leakage | Insulation Resistance | 50Mohm Min. at 500Vdc |
| Operation Temperature | -25°C to +50°C | Storage Temperature | -25°C to +60°C |
| Safety Standards | IEC/EN 60335-2-29, IEC/EN 60335-1, BS EN 60335-2-29, UL 1012, CSA C22.2#107.2, EN 55014-1, EN 55014-2, IEC/EN 61000-3-2, IEC/EN 61000-3-3, BS EN 62233, EN 62233, AS/NZS CISPR 14.1-2013, ISO 7176-21, ISO 7176-25, ISO 7176-14, ISO 7176-15, DOE 10 CFR 430.32 (z), CEC-140-2019-002 | ||

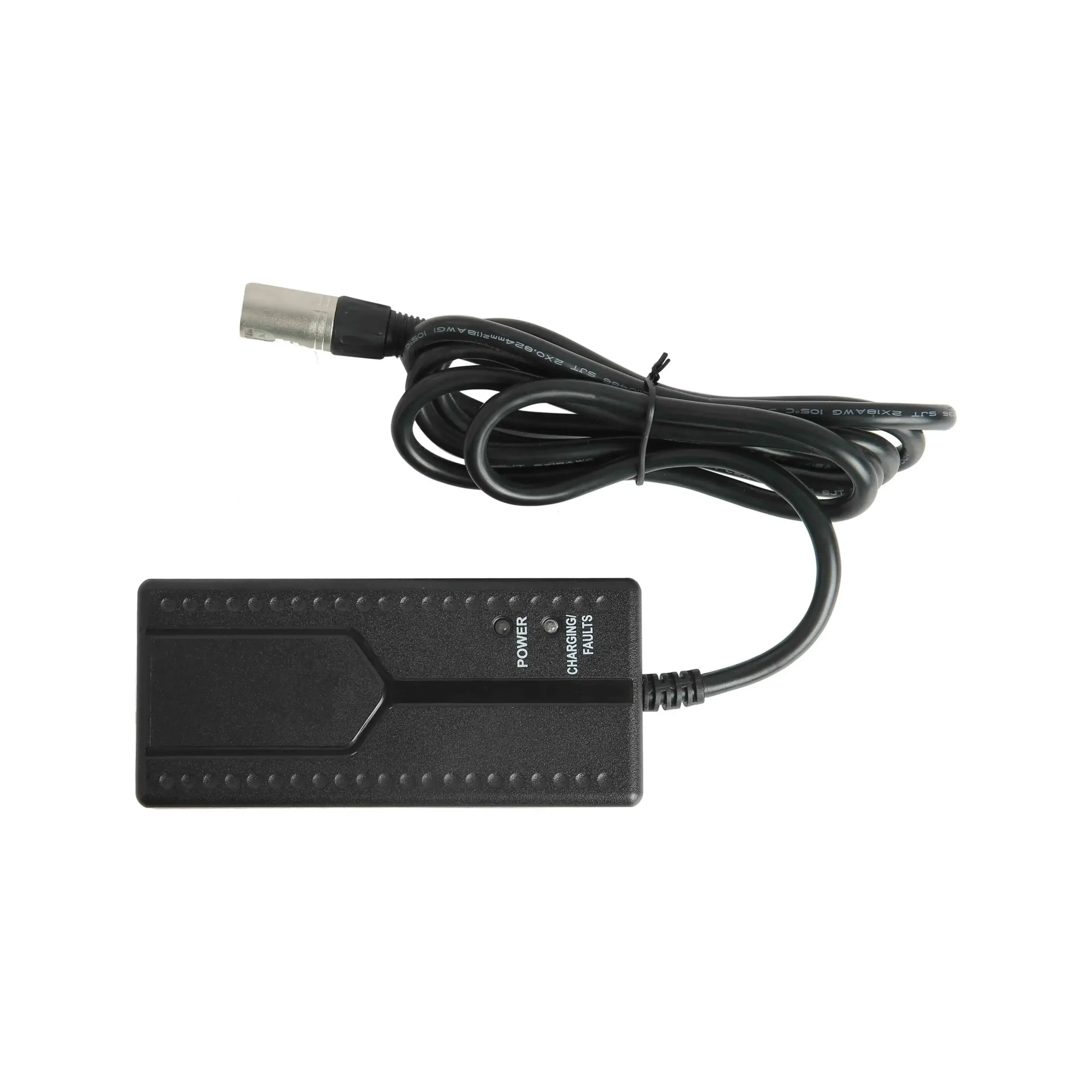

| 2 LEDs for Status Indication | ||
| 1. Power LED (Clear Lens - Red Color) | ||
| Description | LED | |
| Power On | On | |
| No AC Power | Off | |
| 2. Charging / Faults - LED (Clear Lens - Red / Green Color) | ||
| Charging - Description | Red LED | Green LED |
| No Battery / Full Charge (20 Hrs) | Off | Off |
| Bulk / Absorption Charge | On | Off |
| Float Charge | Off | Continuous Blinking |
| Maintenance Charge | Off | On Steady |
| INDICATION CHARGE / FAULT - Red LED | FAULT |
| LED is off | No batteries - Voltage < 9V |
| LED - continuous rapid flashing | 12 hr. charge timed out |
| LED - 1 flashes every 3 sec | Battery voltage < 14V |
| LED - 2 flashes every 3 sec | Batteries are connected in reverse polarity |
| LED - 3 flashes every 3 sec | Over voltage from batteries |
| LED - 4 flashes every 3 sec | Over current from charger |
